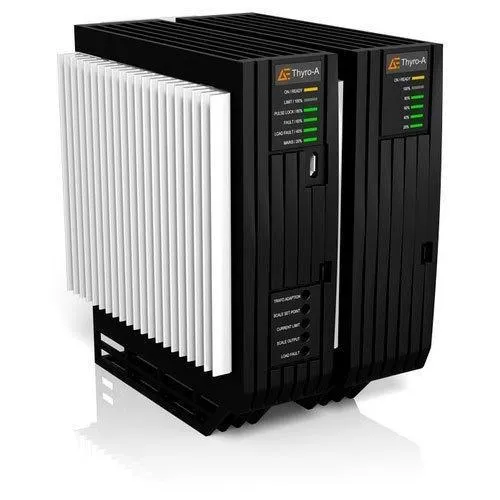

Advanced Energy Thyro A 2A Series 2 Leg 3 Phase SCR Power Controller, Burst(TAKT)Firing Mode Only. Compatible Replacement for Eurotherm
Features
- 400VAC 10/-57% Line to Line Voltage, Current or Power Control
- Smallest footprint on the market
- Built in Fuses
- 3 Phase, 2 Leg Economical Burst Controller Firing Mode
- (0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control
- Removable Cover
- USB Configuration/Bias Setting
- Potentiometer Adjustment
- Synchronisation Function
Applications
- Electrical Ovens, Kilns, or Furnaces
- Primary Control of Transformer Loads in Phase or Burst Fire mode
- Resistive Loads up to 6:1 Hot/Cold Ratio
- AC Soft Starter (Combined with PLC)
- Power Regulation Applications
- Electric Boilers
- Brewery Heating
- Industrial Light Dimming
- Suitable for extreme environments such as mining
Series Optional Features
For HRL
- Current Control/Feedback
- Programmable Relay Alarm Output
- Load Monitoring
- Analogue Output
For HRLP
- As above with Power Control Feedback
Communication Options
Specification
| Advanced Energy Part Number | Thyro A 2A 400VAC |
| Approvals | CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC |
| Control Accuracy | 3% at rated voltage |
| Rated Operating Temperature | 45°C |
| Temperature Derating | 0.9 x Inom @ 50 Deg C, 1.1 x Inom @ 35 Deg C |
| SCR Configuration | Single Phase AC Switch |
| Control Modes | 2 Leg Burst(TAKT) for low dissipation |
| Control Input | 4(0)-20mA, 0(1)-5V, 0(2)-10V, POT |
| Load Current | 16 to 1500 Amp @ 45 Deg C (110% @ 35 Deg C Max) |
| Control Range | 0-100% |
| Options | Conformal Coating for Gas or High Humidity Environments |
| Mounting Style | Panel Mount |
| Supply Voltage Range | 400VAC 10/-15% (-57% with 24VDC Aux Supply) |
| Soft Start | Via PLC input |
| Termination Style | Screw |
| Unit Weight | 2.1 to 74kg |
| Factory Pack Qty | 1 |
