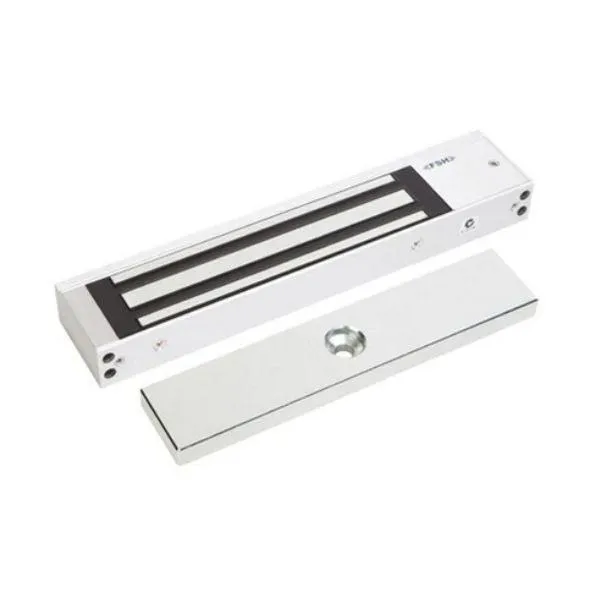

The FSHFEM3500M is a slimline single monitored door lock designed for fail safe use. It operates on 12/24VDC and is part of the FEM3500 series.

This product is designed with a fail-safe feature, to ensure maximum security of your premises. It's compatible with both 12VDC and 24VDC power sources, providing a versatile solution for various applications.

Adding an FSH Magnetic Door Lock to your home or office is an easy way to increase security and peace of mind. With top-of-the-line technology and a sleek, slimline design, these non-monitored locks are a reliable and effective solution for protecting your space.

Model: FSHFEM3500M

The FEM3500 is an unmonitored single magnetic lock and FEM3500D is an unmonitored double magnetic lock with dual 12 or 24 Volt settings.
The FEM3500M is a monitored single magnetic lock and the FEM3500DM is a monitored double magnetic lock both with 12 or 24 Volt settings. Each monitored magnetic lock has a built-in Hall Effect Sensor for remote monitoring of Lock status (LSS).
The devices have a highly visible high luminosity Light Panel and a Door Status Sensor (DSS) for remote monitoring of the door status as well as LockStatus Sensor (LSS). The monitored devices come with a patented Anti-Tamper-Security-Plate as standard to prevent hostile attacks on the dome nut-fixing bolt of the Armature Plate.
All FEM3500 Series Electro Magnetic Locks come with a lifetime warranty and have no
residual magnetism.

Tested to Australian and New Zealand standards, including a 4-hour fire rating, these maglocks are Dual Voltage, 12/24VDC, and come in single or double (D) versions, either monitored (M) or non-monitored. Once powered off, the maglocks have no residual magnetism, which extends the life of the lock and door and gives a better user experience.

The monitored versions (M), include a red-green coloured LED indicator to quickly identify the door and lock status. Activated by a number of credential readers such as PIN pads, fob readers or other access control platforms, this range is ideal for most commercial applications.

Features

• Dual Voltage: 12 /24 VDC field selectable
• Door and Lock Status Monitoring Sensor
  (DSS and LSS S with M Models)
• No residual magnetism
• Lifetime warranty
• Fire Rated 4-hour

Specifications
