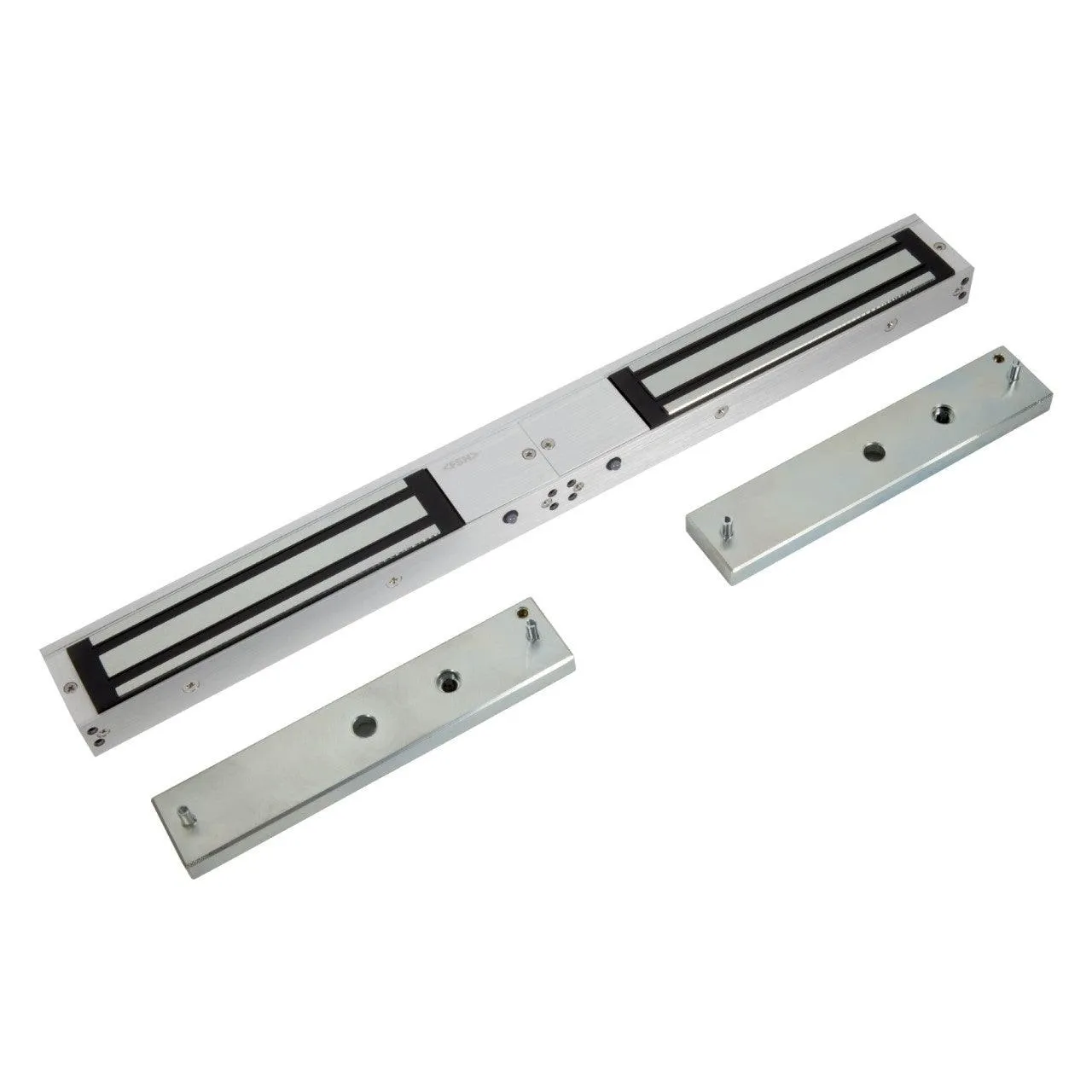

The FSHFEM4300DM is a slimline double monitored door lock designed for fail safe use. It operates on 12/24VDC and is part of the FEM4300 series.
This product is designed with a fail-safe feature, to ensure maximum security of your premises. It's compatible with both 12VDC and 24VDC power sources, providing a versatile solution for various applications.
Adding an FSH Magnetic Door Lock to your home or office is an easy way to increase security and peace of mind. With top-of-the-line technology and a sleek, slimline design, these non-monitored locks are a reliable and effective solution for protecting your space.
Model: FSHFEM4300DM
The FSH FEM4300 Series of electromagnetic Locks come with a 5 year mechanical warranty and a hold strength of up to 280kg, so you have the peace-of-mind that entrances are secured to protect people and property.
Tested to Australian and New Zealand standards, including a 2-hour fire rating, these maglocks are Dual Voltage, 12/24VDC, and come in single or double (D) versions, either monitored (M) or non-monitored. Once powered off, the maglocks have no residual magnetism, which extends the life of the lock and door and gives a better user experience.
The monitored versions (M), include a red-green coloured LED indicator to quickly identify the door and lock status. Activated by a number of credential readers such as PIN pads, fob readers or other access control platforms, this range is ideal for most commercial applications.
Features
- Dual Voltage: 12 /24 VDC field selectable
- Door and Lock Status Monitoring Sensor
(DSS and LSS S with M Models) - Built-in varistor (MOV) surge protection
- Red-Green bicolour LED on monitored version
- No residual magnetism
- 5 year warranty
- Fire Rated (up to 2-hour fire rated in accordance with AS 1905.1:2015)
Specifications
| BRAND | |
|---|---|
| SERIES | |
| ELECTRIC/MECHANICAL | ELECTRIC |
| DEVICE TYPE | |
| MONITORED | |
| FAIL SAFE/FAIL SECURE | FAIL SAFE (PTL) |
| MOUNTING | SURFACE MOUNT |
| FIRE RATING | 2 HOUR FIRE RATING |
| POWER | 12VDC,24VDC |
| WARRANTY | 60 Months |
Technical Specifications
FEM4300(Single) FEM4300D(Double) | FEM4300M(Single) FEM4300DM(Double) | |
HOLDING STRENGTH | Up to 280kg (for single magnetic lock) | Up to 280kg (for single magnetic lock) |
VOLTAGE/CURRENT | Dual Voltage 12/24VDC 12VDC= 500mA (Double x2) 24VDC= 250mA (Double x2) | Dual Voltage 12/24VDC 12VDC= 500mA (Double x2) 24VDC= 250mA (Double x2) |
APPROVALS | 2-hour fire rated in accordance with AS1905.1:2015 (contact Allegion for more details). | 2-hour fire rated in accordance with AS1905.1:2015 (contact Allegion for more details) |
MONITORING | N/A | Red-Green Bi-colour LED Lock Status Sensor (LSS) Door Status Sensors (DSS) |
SIZE | Single door series magnet: 268mm (L) x 48mm (W) x 25mm (D) Single door series armature plate: | Double door series magnet: Double door series armature plate: |
